线性分类器

2017-05-08

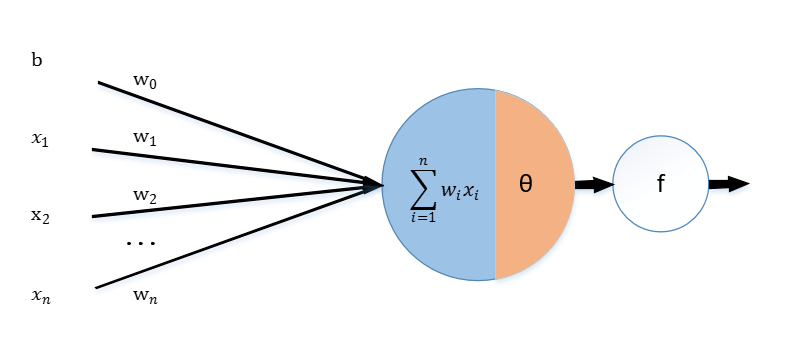

线性分类器的基本模型如下：

\[F = f(\sum\limits_{i=1}^n w_ix_i - \theta)\]

其中f是硬限幅函数（也可以称作阶跃函数，阀值函数）。

\[f(x)= \begin{cases} 0& x<0\\ 1& {x \geq 0} \end{cases}\]

构造线性分类器有很多方法，在此首先介绍的是梯度下降。

\[f(x_{x+1})=f(x_k+\rho_k\triangledown^{(k)})\] \[x_{k+1}=x_k+\rho_k\triangledown^{(k)}\] \[f(x)=w^T*x+b\]

将误差error看做\(\rho_k*\triangledown^{(k)}\)

\[error=target-hardlim(f)\]

然后用误差修正权重系数，进行如下迭代

\[w_{k+1}=w_{k}+a*x^T*error\]

python代码如下：

# -*- coding: utf-8 -*-
import os
import sys
import numpy as np
import operator
from numpy import *
import matplotlib.pyplot as plt


def file2matrix(path, delimiter):
	fp = open(path, "rb")  # 读取文件内容
	content = fp.read()
	fp.close()
	rowlist = content.splitlines()  # 按行转换为一维表
	# 逐行遍历
	# 结果按分隔符分割为行向量
	recordlist = [map(eval, row.split(delimiter)) for row in rowlist if row.strip()]
	return mat(recordlist)  # 返回转换后的矩阵形式


# 绘制分类点
def drawScatterbyLabel(plt, Input):
	m, n = shape(Input)
	target = Input[:, -1]
	for i in xrange(m):
		if target[i] == 0:
			plt.scatter(Input[i, 0], Input[i, 1], c='blue', marker='o')
		else:
			plt.scatter(Input[i, 0], Input[i, 1], c='red', marker='s')


# 根据数据集构造数据阵
# 第1列全1，第2/3列为输入数据
def buildMat(dataSet):
	m, n = shape(dataSet)
	dataMat = zeros((m, n))
	dataMat[:, 0] = 1
	dataMat[:, 1:] = dataSet[:, :-1]
	return dataMat


# 硬限幅函数
def hardlim(dataSet):
	dataSet[nonzero(dataSet.A > 0)[0]] = 1
	dataSet[nonzero(dataSet.A <= 0)[0]] = 0
	return dataSet


if __name__ == "__main__":
	# 输入数据
	Input = file2matrix("testSet.txt", "\t")
	target = Input[:, -1]  # 获取分类标签列表
	[m, n] = shape(Input)

	# 按分类绘制散点图
	drawScatterbyLabel(plt, Input)

	# 构建x+b 系数矩阵：b这里默认为1
	dataMat = buildMat(Input)
	alpha = 0.001  # 步长
	steps = 500  # 迭代次数

	weights = ones((n, 1))
	# 主程序
	# wk+1 = wk + a * x * error
	for k in xrange(steps):
		gradient = dataMat * mat(weights)
		output = hardlim(gradient)
		errors = target - output
		weights = weights + alpha * dataMat.T * errors

	print weights  # 输出权重

	X = np.linspace(-5, 5, 100)
	# y=w*x+b: b:weights[0]/weights[2]; w:weights[1]/weights[2]
	Y = -(double(weights[0]) + X * (double(weights[1]))) / double(weights[2])
	plt.plot(X, Y)
	plt.show()
